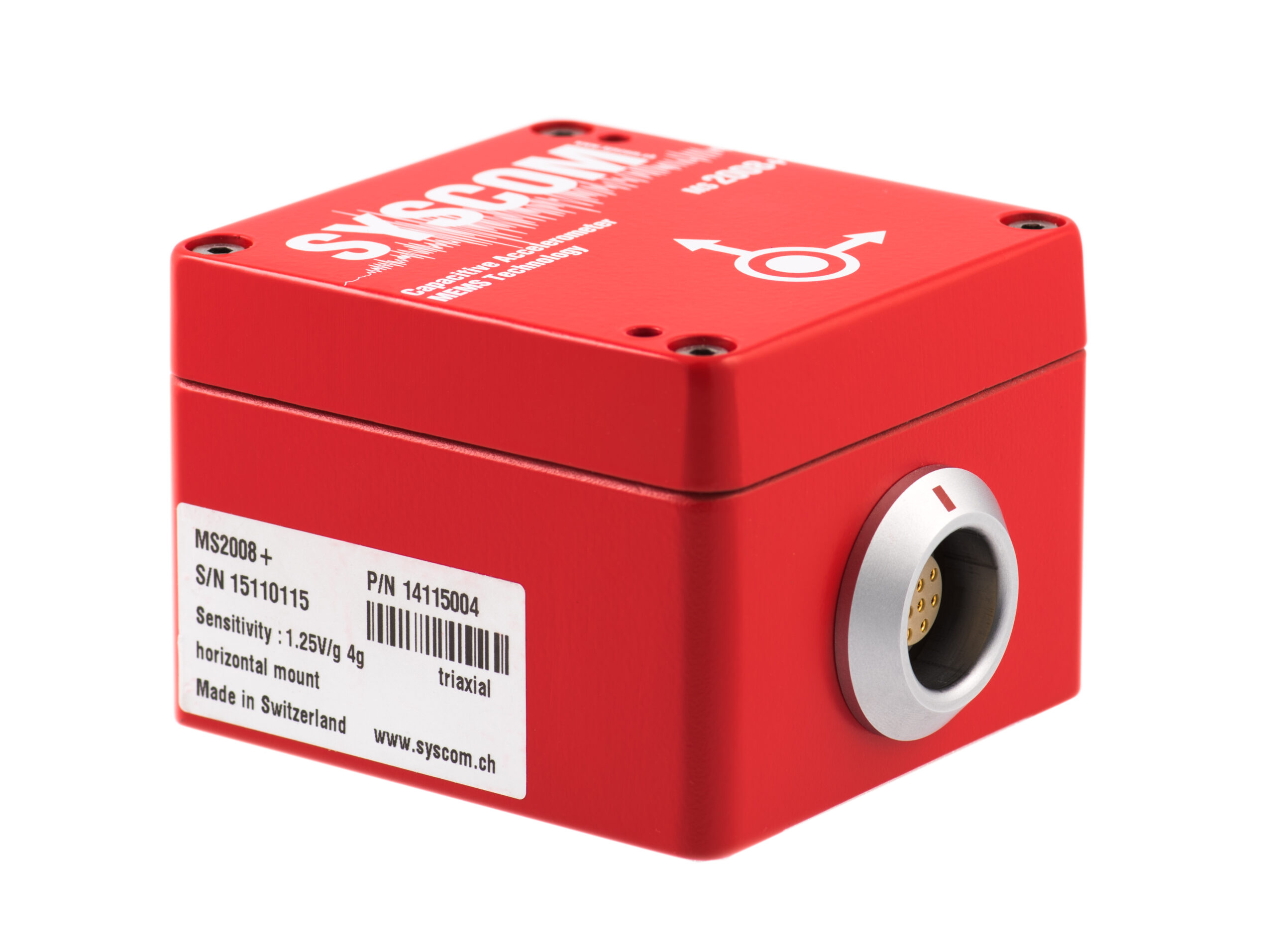

MS2008+

MEMS accelerometer

The MS2008+ is a triaxial high dynamic range accelerometer based on state-of-the art MEMS technology. Its small dimensions, rugged and splash-proof design and excellent long term stability make the MS2008+ the perfect match for seismic monitoring in dams, buildings and other structures.
The micro-machined capacitive MEMS sensor, thanks to its flat frequency and phase response together with the very low short- and long-term drift provides true engineering data that require no post-processing.
The MS2008+ from Syscom comes factory calibrated, equipped with a fully comprehensive self-test function and requires no re-calibration.

Main features

  • MEMS accelerometer with micro-machined capacitive sense element
  • Protection: IP 65
  • Measuring ranges: ±4 g
  • Sensitivity: 1.25 V/g (differential)
  • Frequency range: DC to 600 Hz (-3 dB)
  • Noise: typ. 7 µg/√Hz
  • Dynamic range: typ. 100 dB (@100 Hz BW)
